When designing the best environment for your MBF Bioscience microscope-based system, the ideal choice is a temperature-controlled, vibration-free, dust-free room. The microscope, the most sensitive component, should be located on a firm foundation within the building, away from elevators, autoclaves, freezers, or other sources of vibration. It should be on a very stable surface that does not vibrate. Also, avoid placing the microscope near any cooling or heating vents and ducts.

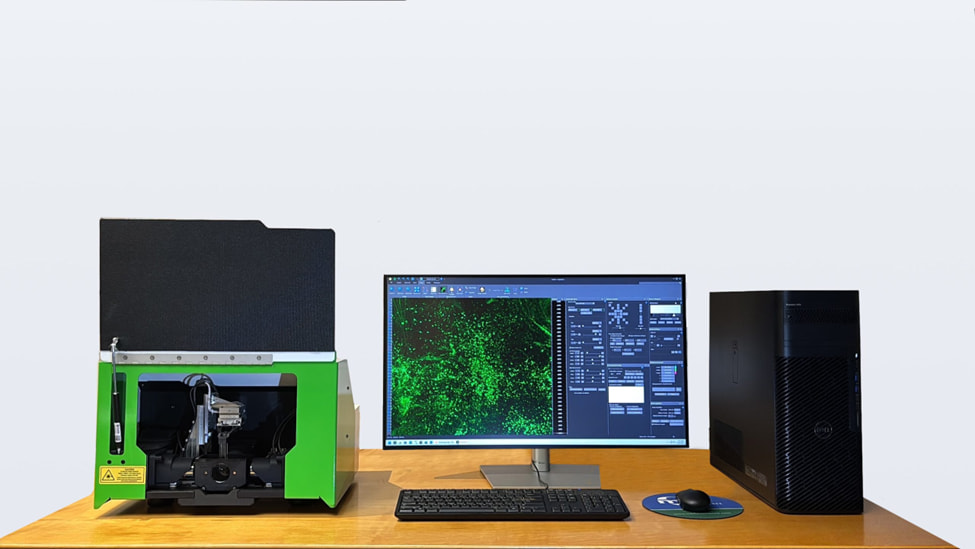

Tabletop: A tabletop of around 5 x 2 feet is typically sufficient to accommodate the SLICE microscope and PC, while still leaving some space for sample handling. The SLICE microscope is approximately 18 x 15 x 11 inches (about the size of a microwave). The SLICE microscope can be placed on a standard tabletop if the surface is stable and free from environmental vibrations.
Power: The power outlet should be at least 120V, 20 amps. Another suitable configuration includes 240V, 10 amps.
Internet: The campus LAN Ethernet port should be at least 10Mbps and connected to the SLICE system (PC) with a CAT 5e or higher rated Ethernet cable. An Ethernet Internet connection is required for initial remote installation. It is also highly desirable for ongoing remote support and software updates.
Temperature control: Instruments are sensitive to temperature fluctuations and extremes. For microscope-based systems, MBF recommends temperatures between 50°F and 104°F (10°C and 40°C) and relative humidity of <75% at 95°F (35°C).
Set Up Space Requirements: During unboxing, additional space is required to safely unpack the equipment. The SLICE package box is approximately 28 x 25 x 23 inches and is recommended to be placed on the floor during unpacking. Ensure there is adequate clearance around the box to allow safe and unobstructed removal of the SLICE microscope and accessories.
